LOOKING THROUGH A DIRECTOR'S VIEWFINDER

A Short Story about Director's Viewfinders.

(Original posted August 2009)

In the beginning, capturing the vision that movie directors had in their heads and communicating it to their cameraman was inefficient and without any other recourse, the movie director used his hands and a good deal of imagination to frame the shots. As time progressed and technology developed, he would "borrow" the viewfinder located on the side of the early motion picture camera. Years later, a version of the famed Mitchell camera viewfinder was used. Eventually, directors and cinematographers with a sufficient amount of clout at the studios asked studio machine shops to make an optical device or viewfinder that would come close to simulating set-ups as seen by the camera lens.

An early wooden and brass director's viewfinder

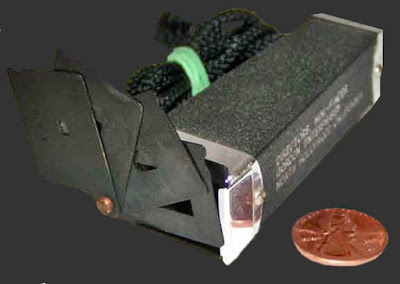

Early Alan Gordon director’s viewfinder with cut-out mattes

Armed with these early viewfinders, they used cut-out mattes to represent the focal lengths of various lenses. The studio machine shops even developed a zooming device for use with the early viewfinders. Several versions of directors viewfinders were developed during this time. Just after World War II in 1946, Tewe, a German optical company, developed a small viewfinder which could be hung around the neck. It was soon being used and worn by directors and D.P.'s throughout the motion picture industry around the world.

Orson Wells & Cinematographer Gregg Toland lining up

 a camera shot using a Mitchell viewfinder

on the set of "Citizen Kane" in 1940

Tewe Director's Viewfinder Model 3B, circa 1970

With the introduction in the 1960's of wide angle prime lenses and the 25-250mm Angenieux zoom, the Model 3B could not be used to accurately simulate the new 10:1 zoom ratio.

In 1975, Alan Gordon Enterprises in Hollywood, California started the development of what would become the 10:1 Mark IV Directors Viewfinder. The Mark IV was introduced at the S.M.P.T.E. conference and trade show in 1979. This was the beginning of the modern day Director's Viewfinder. Subsequent updated models have been the Mark V, introduced in 1991 and the current Mark Vb model in 2005. In addition to its 10:1 zoom range, the Mark IV featured windows through which the director could easily see the lens focal length he was considering. These windows represented 16, 35 & 35 anamorphic formats, and gave the cinematographer instant information about lens focal length and scene framing.

Mark IV evolved into Mark V Director's Viewfinder in 1987. With the Mark V, Alan Gordon Enterprises introduced an enhanced 12:1 zoom range, a wider angle capability, and two additional windows covering Super 16, 1/2" & 2/3" video formats.

TODAY'S DIRECTOR VIEWFINDERS

The Mark Vb Director's Viewfinder represents the industry's state-of-the-art. It precisely defines choice of lenses, angles and coverage in a wide variety of formats for both film and video. The Mark Vb enables film professionals to communicate their visions to each other instantly and with complete accuracy, allowing the time saved to be used in the art of film-making. With a 12:1 zoom ratio, the Mark Vb Director's Viewfinder addresses all framing situations, making it an essential tool for today's professional filmmaker. Setting up shots using the 16mm and 35mm direct-reading windows provides a wide range of film and video formats including 2/3", and Super 16.

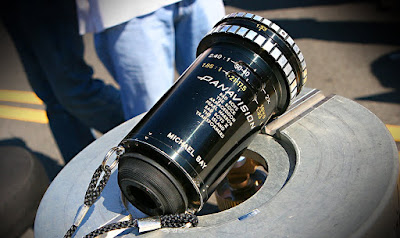

Michael Bay's engraved Mark VB by Panavision

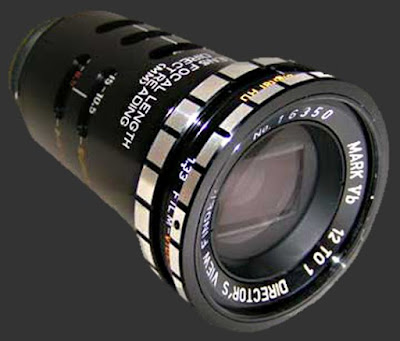

Craig Kief ASC, Panavision's engraved

Mark Vb Director's Viewfinder

in recognition of his cinematography achievements

Director Randall Einhorn lining up a shot with

the Panavision 135-420mm

Director's Viewfinder

on The Muppets set

(Courtesy Craig Kief, ASC)

Cavision VFC52PL with Arri PL bayonet mount for 35mm

standard lenses with extension eyepiece

The Fries/Mitchell "Special Effects 35mm Director's Viewfinder" is a highly customizable and flexible system. The standard finder comes with your choice of lens mount, Arri-PL, Panavision or BNC-R, (1) ground glass, handle, rubber eye cup and case. The mount is easily changed and re-centered for Standard and Super 35 formats. Inside the finder is a set of registration pins to hold a film clip.


The Panavision Mini-DV Director’s Viewfinder, made in Australia, uses Panavision Millennium 35mm camera ground glasses. The ground glass image can be viewed through a color viewfinder or flip-out colour LCD monitor and instantly recorded to high quality digital video or stills. An on-board microphone enables the recording of location sound or commentary.

An additional video monitor can be fed from its video out connector. The unit has a FireWire connector so that your video and still images can be easily transferred to computer. Power is supplied by an on-board Canon camcorder battery. An infrared remote control is included for convenient playback control. Available in PV or PL lens mount, the Panavision Mini-DV Director’s Viewfinder will make a valuable addition to your next shoot. Currently, only available in Panavision Australia, New Zealand and Asia.

Denz OIC-35mm Director's Viewfinder

This high-end director's viewfinder allows you to use your actual camera lens to view and set shots. The OIC-35 is a precise instrument which was conceived for the rough environment of a film shoot, the housing is a light alloy, hermetically sealed and fitted with a 54 PL mount (BNC socket available).

Features: Specially computed and designed optical light path. Ergonomic eyepiece with diopter balance from -4 to +4 . Eyepiece adjustable for right or left eye. Ergonomically designed cherry wood handle, for left or right hand or universal grip. Carrying belt, made of fine nappa leather. Delivered without ground glass (Arri 435/535)



                                   P+S Technik Ultimate Director’s Finder for full format, is an
                                   ergonomically designed optical viewfinder system with
                                                spherical and anamorphic capabilities.

The viewfinder is compatible with all sensor formats up to Red Monstro 8K and features interchangeable lens mounts. Current squeeze factors are 1.5x and 1.9x. (1.9x covers 1.8x and 2.0x squeeze factors).

Users can create customized frame lines by using a provided app, printing on acetate slides and inserting them into the ground-glass system. The viewfinder features a pivoting handle grip to aid counterbalance and an adjustable eyepiece diopter.

The UltiMate 16 Kish Optics Director viewfinder

The UltiMate 16 is a director's finder that features multiple 16mm camera type/format-type ground glasses, interchangeable lens mountings, an optional 1/2" CCD-ready B&W or color video-tap, and provides in-the-view-finder images that are "full-frame." The video-tap (12V power supplied by on-board batteries or an external source), gives behind-the-scene parties the opportunity to view and comment on the shot. Used for location scouting or scene testing, the UltiMate can record specific shots, then return to the production facility for playback and analysis. On the set, the UltiMate finder can help set up the next shot while the current set is being filmed.

Director William Wyler lining up a shot using a Director’s Viewfinder on Ben Hur’s set.

The epic was filmed using anamorphic 65mm by Robert L. Surtees, ASC

Lindsey Optics LFDV-SET1 Large Format Directors

Viewfinder Set with Full Frame Module

LFDV-SET1 includes Full Frame Module only. Additional modules are available for Super-35 and VistaVision formats. The Lindsey Optics Large Format Optical Viewfinder provides optical through the lens viewing for an unprecedented range of formats from Super-35 to Red Monstro and ARRI Alexa 65.

At the heart of the LF Viewfinder design are interchangeable modules for quick and easy tool-free format changes. With a push of the red button, each module slips in and out of the LF body and securely nests in place.  Available modules include Large Format (ARRI Alexa 65) VistaVision (RED Monstro 8K), Full Frame (Sony Venice) and Super 35. Ground glasses attache magnetically to the modules. Ground glasses are marked with format frame lines using the included Ground Glass Marking Jig (template) kit. The LF Viewfinder features an LPL lens mount and includes an LPL to PL adapter. The Eyepiece provides diopter adjustment from -4 to +4 diopter.

The LF is designed for intuitive and comfortable balance regardless of changing loads. The NATO Rails on the base of the viewfinder and on the base of the optional handle extension provide balance adjustment. The contoured oak Handle offers a firm and comfortable grip while the Handle Pivot knob activates rosette adjustment.  Format frame lines are marked on the ground glass with pencil using marking jigs (templets) A Ground Glass Marking Jig Set is included with the LFDV Set.

ARRI Director’s Viewfinder

Arri Director's Viewfinder (PL Mount)

The ARRI Director's Finder (PL Mount) is a compact, handheld unit for viewing lens framing, aperture, and image properties without the need for a camera. Includes a standard ARRIFLEX 435 frame Ground Glass, with hundreds of 35mm ground glass formats available. Features an accordion-style rubber eyecup and textured grip for added comfort. Includes a PL port cap and neck strap.

Key Highlights: Handheld Director's Viewfinder, PL Mount, Includes ARRIFLEX 435 Ground Glass.

Denz OIC-35A Director’s Viewfinder

Director‘s viewfinder for anamorphic & spherical lenses. Interchangeable anamorphic / shperical settings. Available with PL or PV hard mount. Flexible eyepiece with +/- 5 dpt diopter adjustment.

Ergonomic universal handgrip, made of cherrywood, with DENZ Soft-Touch coating and quick-adjustment locking rosettes for ideal adjustment of the handle with anti-twist using DENZ keying system

Special extension bracket made of  AW7075 aluminum for optimal balance with larger lenses; three mounting points for handgrip with 1/4" thread on bottom of handgrip for monopod useDENZ ground glass: 1:1.78  / 1:2.35 with 1:1.85  / SCOPE 1:2.39 with 1:1.33 / with center mark/cross.

Courtesy of Alan Gordon Enterprises
